The Basic Principle of the Vapor Chamber
Basic Principle

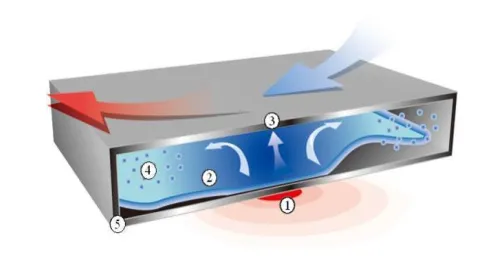

①The vaporization and boiling zone is triggered by the heat source surface.
②Due to the special environment inside the cavity, the steam effectively spreads throughout the entire cavity.
③The steam condenses in the condensation zone, and the temperature is reduced through convection outside the cavity.
④⑤The condensed liquid effectively returns to the boiling zone through special functions.

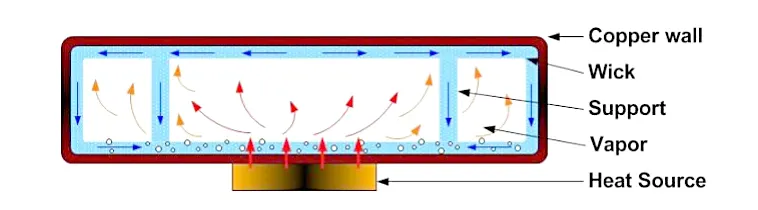

VC flow chart
Condensation part: Absorb and maintain the flow of the condensate working fluid.
Evaporation part: Evaporate the working fluid and supply the subsequent steam pressure for flow.
Transport part: Provide the force for the liquid to return, and transfer the working fluid from the condensation part to the evaporation part.
