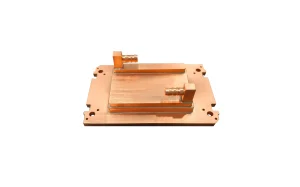

Custom TLP Diffusion Bonded Liquid Cold Plate
High-performance, flux-free thermal management for extreme heat flux applications.
Free Custom Design
Free Thermal Analysis
Best Price Guaranteed
24 Hours Feedback
TLP Diffusion Bonded Cold Plates: Process & Principles
TLP (Transient Liquid Phase) diffusion bonding is a highly specialized joining process we use for cold plates that must survive extreme pressures or aerospace-grade environments. Instead of standard welding, TLP creates a joint at the atomic level, making the two halves of the cold plate virtually indistinguishable from a single, solid block of metal.
What is TLP Bonding?
TLP (Transient Liquid Phase) bonding is a hybrid joining process that combines the best features of diffusion bonding and brazing. Unlike traditional welding, TLP uses a thin interlayer material that melts and diffuses into the base metal (Copper or Stainless Steel) at the molecular level.
A monolithic, joint-free structure with strength equivalent to the parent material. For liquid cold plates, this means zero risk of leakage, perfectly clean internal micro-channels, and the ability to withstand extreme pressures. It is the preferred choice for mission-critical applications in aerospace, military radar, and high-end semiconductor cooling.
The TLP Process: From Layers to Monolith
Assembly: A specific interlayer foil (with a lower melting point) is placed between the cold plate base and the cover.
Heating: The assembly is heated in a vacuum furnace. The interlayer melts, filling all micro-gaps at the interface.
Isothermal Solidification (The Magic): While temperature is held constant, the melting elements diffuse into the base metal. The liquid layer solidifies at the bonding temperature.
Homogenization: The joint becomes chemically and mechanically identical to the base metal. The “weld line” effectively disappears.
Why Choose TLP Bonding Over Traditional Brazing?
Parent-Material Strength: The bond strength is comparable to the solid block itself. It can handle significantly higher burst pressures than vacuum brazing.
Flux-Free & Clean: No flux is used, meaning zero residue inside the micro-channels. This prevents clogging in ultra-fine fluid paths.
Precision Geometry: Ideal for complex internal structures (like 0.2mm micro-fins) without the risk of solder clogging the fins.
High Temperature Resistance: Once bonded, the re-melting temperature of the joint is much higher than the bonding temperature, allowing for subsequent high-temp processing.
Applications for TLP Cold Plate
AI Servers & Data Centers (HPC)
Precision Medical Equipment
High-Power Optical & UV LED Cooling
IGBT & Power Electronics
Frequently Asked Questions about TLP Bonding
Standard diffusion bonding requires extremely high pressure and perfectly flat surfaces to crush asperities. TLP bonding uses a liquid interlayer to fill gaps, requiring much less pressure (often just tooling weight) while achieving similar bond strength.
Yes. TLP is excellent for joining dissimilar materials (e.g., Copper to Stainless Steel) because the liquid phase ensures perfect contact and diffusion bridging.
It is generally more expensive than standard brazing due to the long furnace cycle times and precise preparation, but it is cost-effective for high-value applications requiring zero failure rates.
