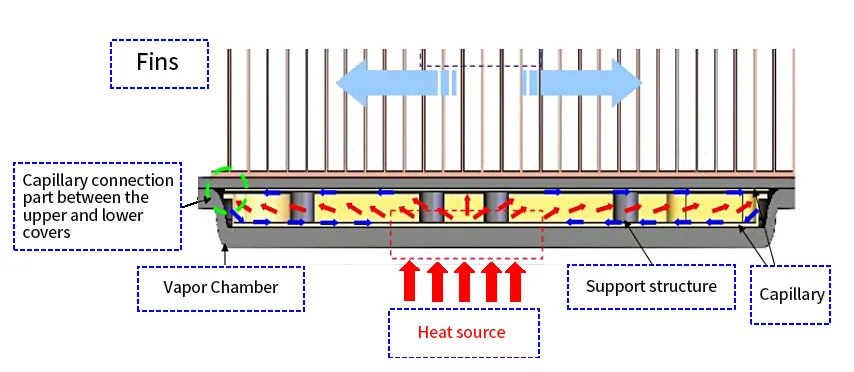

Application Advantages of the Heat Plate
- Circulation throughout the entire space
- Solve the problem of hot spots and expand the heat propagation area
Comparison with Solid-core Copper Heat Sink

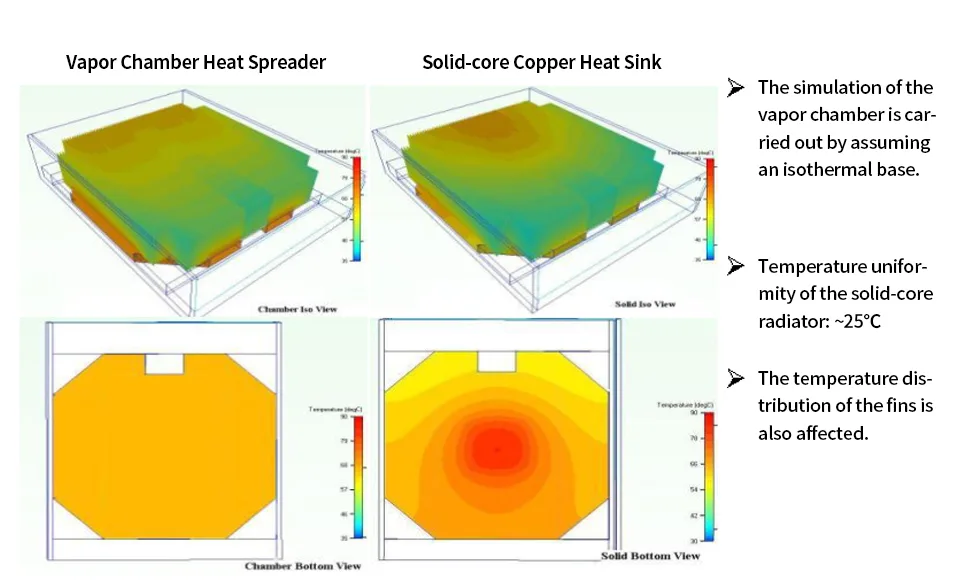

Simulation Analysis (Temperature Uniformity)
(90×90 mm² cavity/heat sink (6 mm thick substrate) with a 19x19mm² heat source, applied power of 200W, parallel flow)

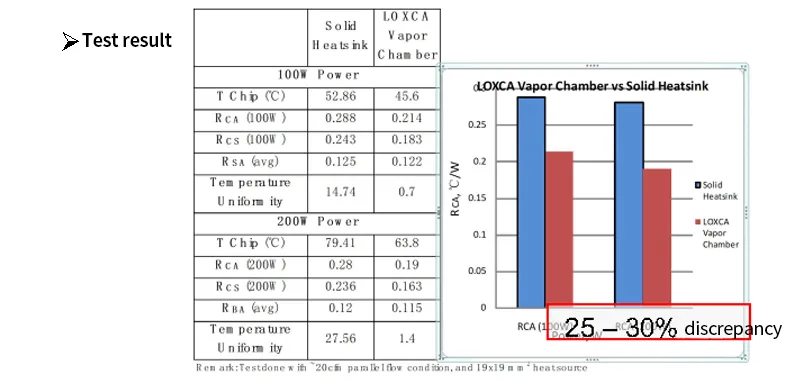

Experimental Data
Experimental Data
Radiator Category: Blade Server Radiator
Dimensions: L110xW90xH41
Base: 6mm-thick copper cavity
Experimental Data (Temperature Uniformity)
The temperature uniformity results are obtained through the infrared imaging method under the test conditions: 200W power input and a heat source size of 19×19 mm².

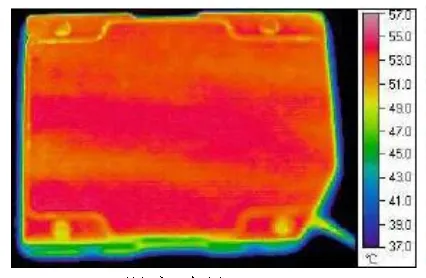

Vapor Chamber Heat Spreader
Temperature difference: <5℃

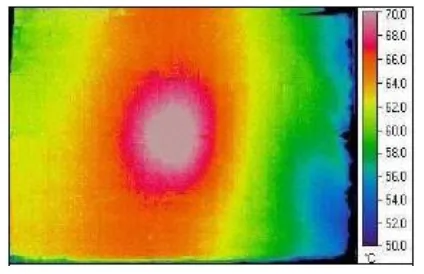

Solid-core Radiator
Temperature difference: ~20℃
